HLW8012 Energy Metering IC — Pinout, Working, and Applications

Introduction

The HLW8012 is a highly integrated single-phase energy metering IC designed for real-time measurement of AC voltage, current, power, and energy consumption.
Manufactured by Hi-Link, this IC is popular in IoT-based smart plugs, smart meters, and home automation systems due to its compact design, digital output interface, and cost efficiency.

Unlike traditional analog metering chips, the HLW8012 directly provides pulse outputs proportional to active power and RMS current, simplifying interface with microcontrollers like ESP8266, ESP32, or Arduino.

⚙️ Key Features

Measures AC Voltage, Current, and Active Power
Provides frequency (pulse) output proportional to:
- Active Power → CF pin
- RMS Current or Voltage → CF1 pin
Built-in multiplexed ADCs for voltage and current sensing
Selectable channel output (voltage or current) via SEL pin
Simple calibration using a reference load
5V supply operation (can work from 3.3V with level shifting)
Low external component count
Excellent for IoT and smart energy monitoring

(adsbygoogle = window.adsbygoogle || []).push({});

️ Pin Configuration of HLW8012

Pin No.	Name	Type	Description
1	V2P	Input	Voltage sensing input (connected via resistor divider from AC line)
2	V2N	Input	Negative reference for voltage channel
3	IP	Input	Current sense input from current shunt resistor
4	IN	Input	Negative reference for current channel
5	SEL	Input	Selects CF1 output mode:• High = Current output• Low = Voltage output
6	CF1	Output	Frequency output proportional to current or voltage (based on SEL pin)
7	CF	Output	Frequency output proportional to active power
8	REVP	Output	Reverse polarity indicator (High if reverse power detected)
9	VDD	Power	Positive supply voltage (typically 5V)
10	GND	Power	Ground reference

Working Principle

The HLW8012 works by sampling voltage and current waveforms via internal ADCs.

Voltage Measurement
- The AC mains voltage is divided down using a high-value resistor network and applied to the V2P/V2N inputs.
Current Measurement
- The load current passes through a low-value shunt resistor.
- The resulting voltage drop is sensed across IP/IN pins.
Signal Processing
- The chip multiplies the instantaneous voltage and current values to calculate active power.
- The RMS values of voltage and current are also computed internally.
Output Representation
- The chip outputs digital pulses:
  - CF → proportional to active power
  - CF1 → proportional to RMS voltage or current (selectable by SEL pin)
- By counting pulses over time, a microcontroller can easily determine energy (Wh) and power (W).

Interfacing HLW8012 with Microcontroller

Typically, HLW8012 is connected to an ESP8266 or ESP32 as follows:

CF → GPIO input (to measure active power)

CF1 → GPIO input (to measure current or voltage)

SEL → GPIO output (to toggle between current and voltage measurement)

Shunt resistor on IP–IN side for current sensing

Voltage divider on V2P–V2N side for voltage sensing

A microcontroller measures the pulse frequency, computes the ratio with calibration constants, and displays the power, current, voltage, and energy on a web dashboard or LCD.

(adsbygoogle = window.adsbygoogle || []).push({});

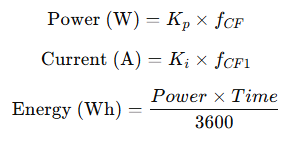

Typical Calibration Formula

After interfacing, you can derive readings as:

where

( f_CF ) = Pulse frequency from CF pin
( f_CF1 ) = Pulse frequency from CF1 pin
( K_p, K_i ) = Calibration constants (determined experimentally)

Applications

Smart Energy Monitors

IoT Smart Plugs

Home Automation Power Modules

Appliance Energy Logging

Smart Meters

Overload Protection Circuits

⚡ Advantages

Low-cost and accurate single-phase energy measurement
Easy to interface with 3.3V MCUs
Requires minimal external circuitry
Direct frequency output simplifies digital measurement
Supports reverse polarity detection

(adsbygoogle = window.adsbygoogle || []).push({});

⚠️ Precautions

Ensure proper isolation when dealing with mains voltage.
Always use opto-isolators or voltage dividers rated for AC line sensing.
Calibrate using a known resistive load for accuracy.
